Series: AV TGR F
Pump body: Cast Iron
Motor shaft: AISI 316
Impeller: AISI 304
Suction
Base: AISI 304
Counter flange: AISI 304
Max. Head: 15,5m
Max. Flow: 75m³/h
Max. Liquid temperature: 35°C
Insulation class: F
Poles: 2
Protection degree: IP 68
Voltage: 230V (1ph) 400V (3 ph)

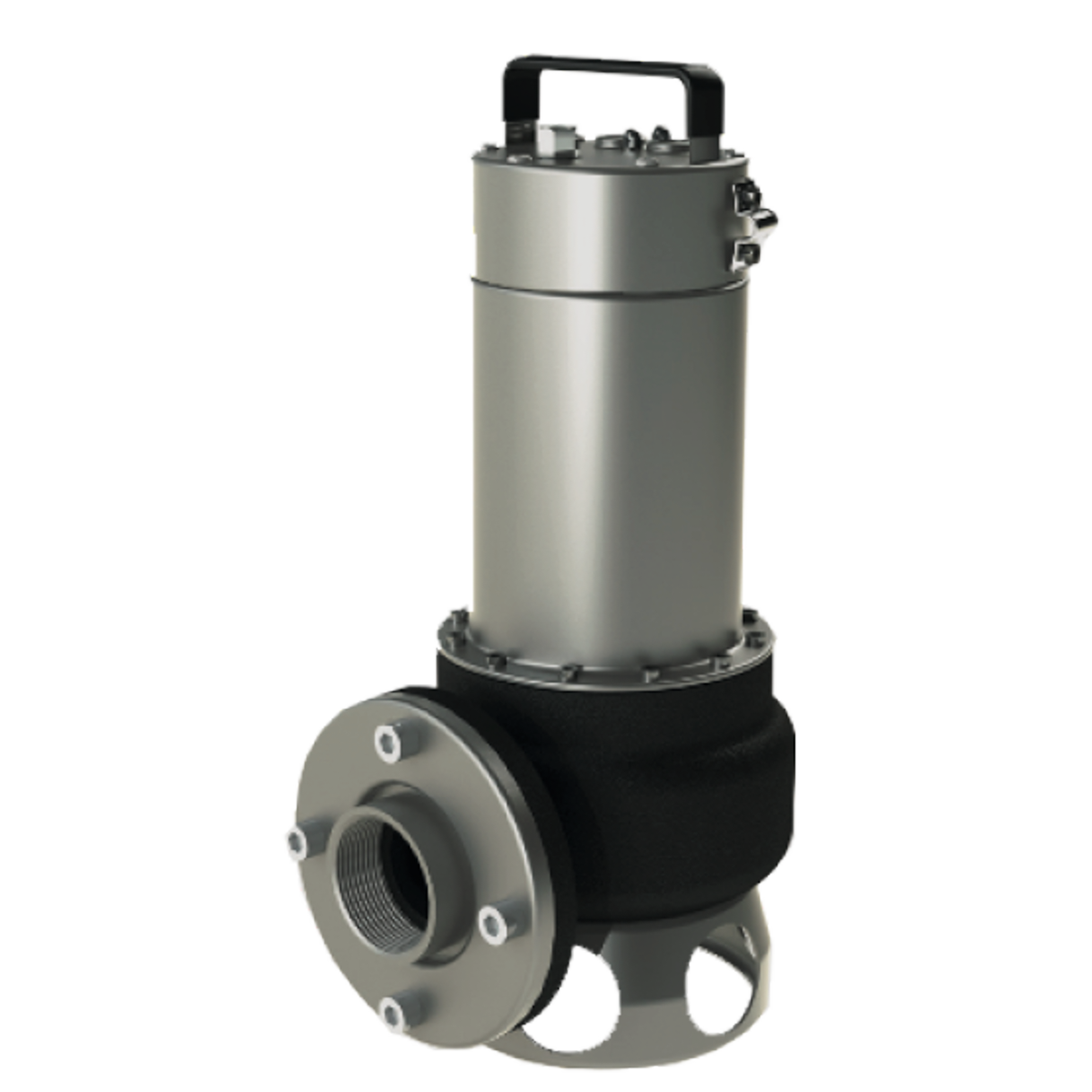

SUBMERSIBLE PUMPS for wastewater
