Series: AV TGR
Pump body: Cast Iron
Motor shaft
Series 70: AISI 416
Series from 80 to 200: AISI 316
Impeller: AISI 304
Suction base: AISI 304
Max. Head: 13m
Max. Flow: 30m³/h
Max. Liquid temperature: 35°C
Insulation class: F
Poles: 2
Protection degree: IP 68
Voltage: 230V (1ph) 400V (3 ph)

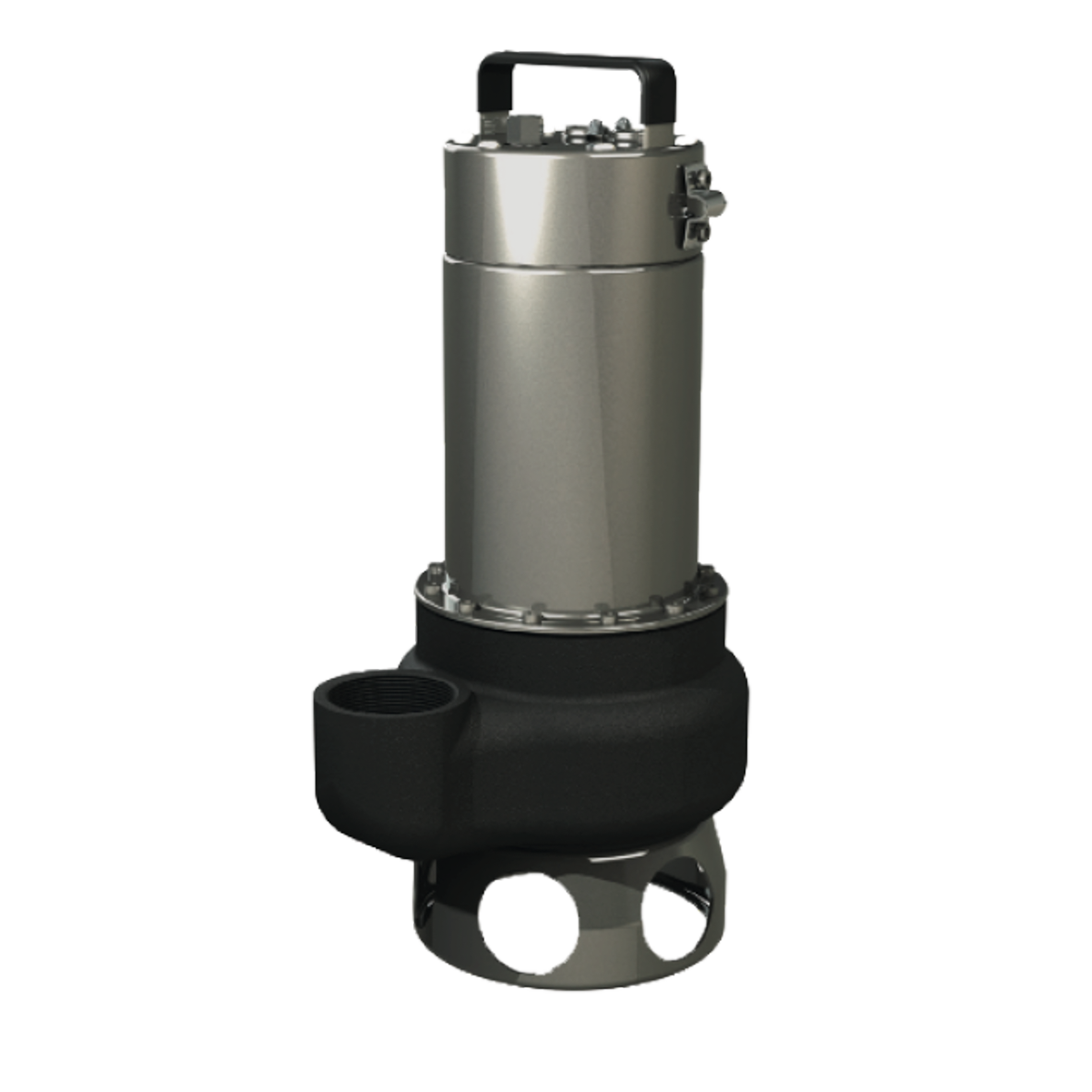

SUBMERSIBLE PUMPS for wastewater
