P C N Series
Industrial, agricultural and domestic application
Pump body: Cast iron Motor shaft: AISI 304 Impeller: Cast iron – only N 32-160 Brass Motor support: Cast iron

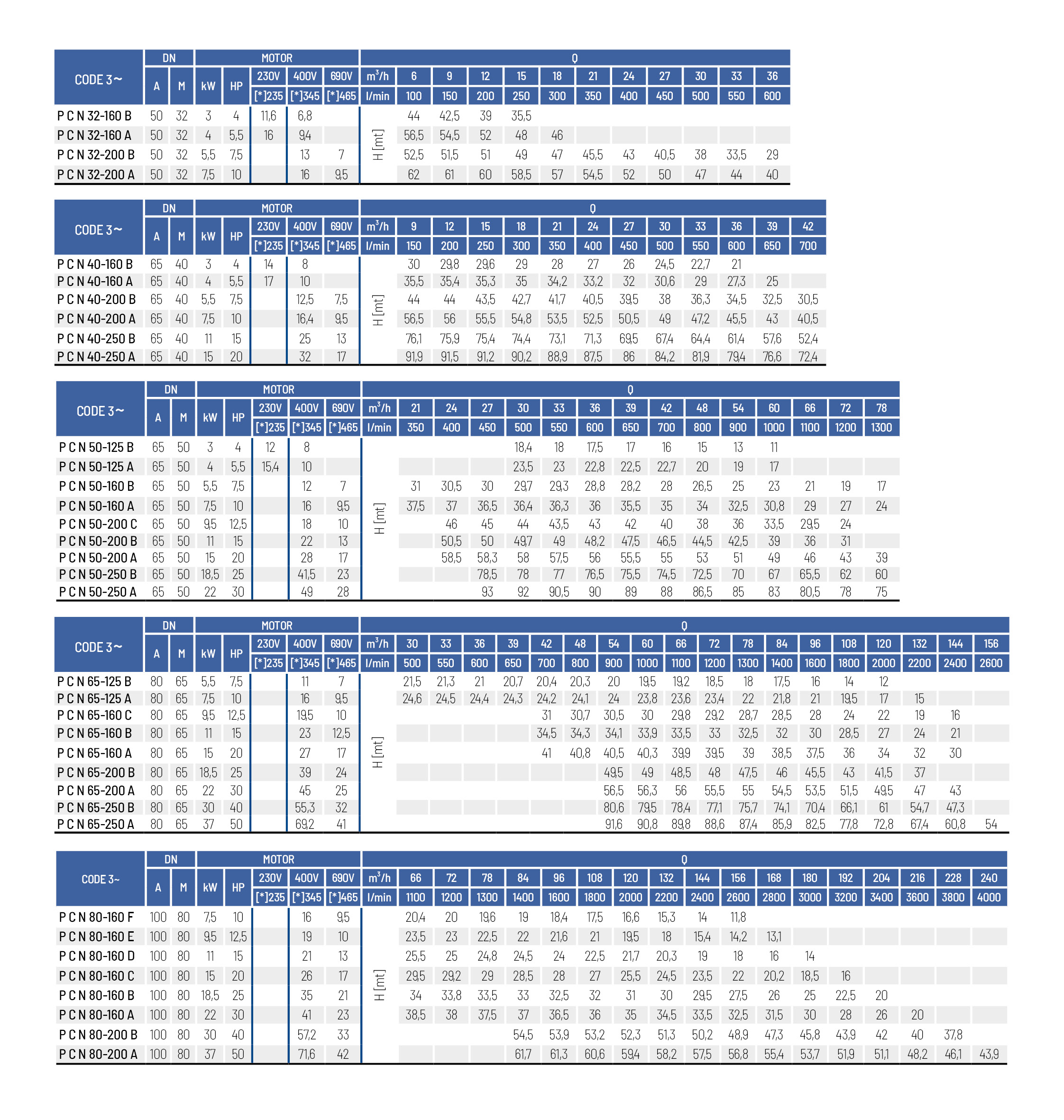

Max. head: 93m Max. flow rate: 240 m³/h Max. liquid temperature: 90°C Insulation class: F Poles: 2 Protection degree: IP44 Voltage: 3x230V on request – 3x 230/400V ≤ 4kW – 3x 400/690V > 4kW
Normalised EN 733
