Series: AV MDX
Motor body: AISI 304
Motor shaft: AISI 9840
Impelle: AISI 304
Suction base: Cast Iron
Max. Head: 32m
Max. Flow: 90 m³/h
Max immersion: 20 m
Insulation class: F
Poles: 2 – 4
Protection degree: IP 68
Voltage: 400 V (3ph)

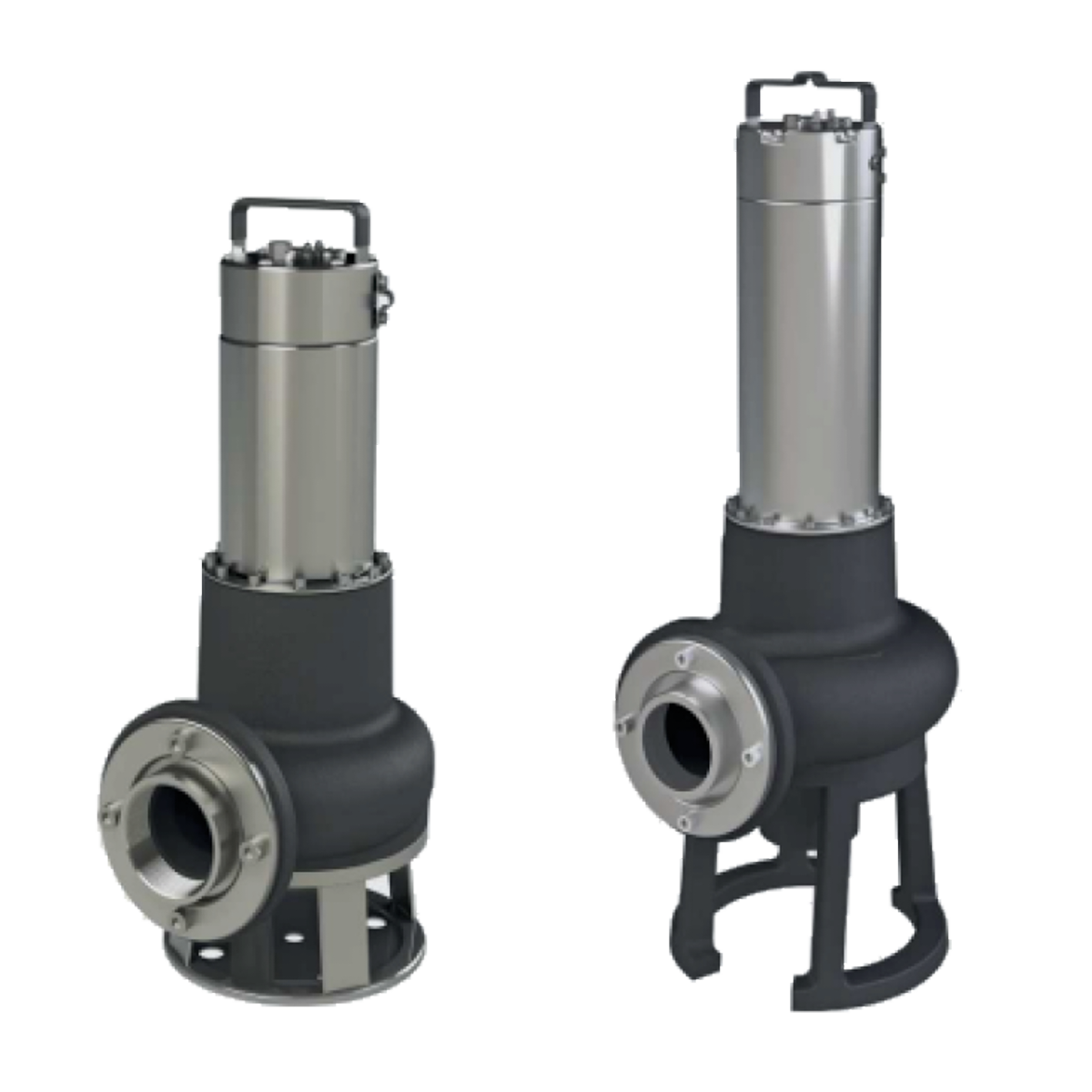

Submersible pumps for dirty and sludgy water
