Series: JX
• Water supply
• Transferring liquids
• Emptying tanks
Pump body: AISI 304
Motor shaft: AISI 304
Impeller: AISI 304
Motor Bracket: Aluminium
Max. Head: 52m
Max. Flow: 3m³/h
Max. Liquid temperature: 35°C
Insulation class: F
Poles: 2
Protection degree: IP44
Voltage: 230V (1ph) 400V (3 ph)

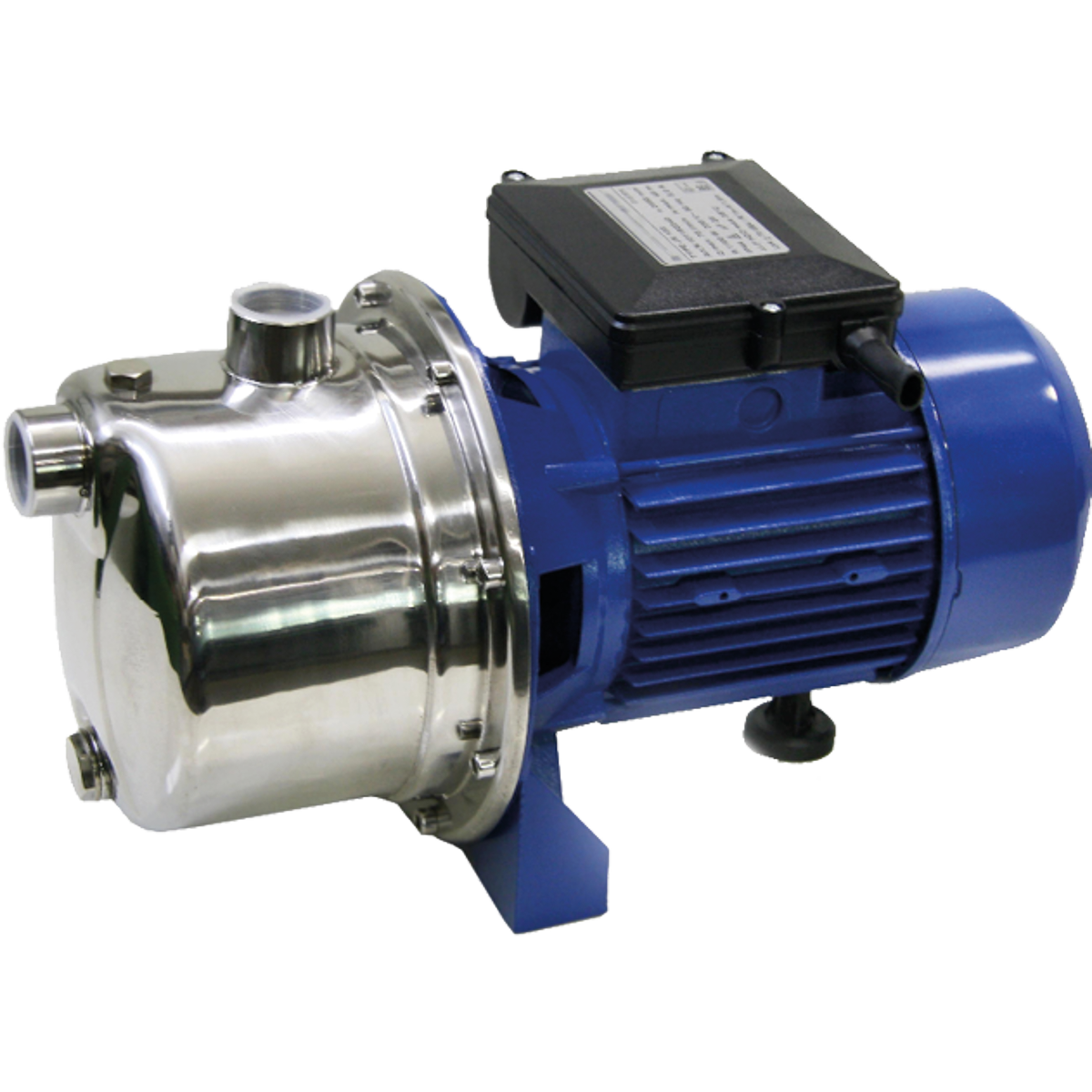

Stainless steel self-priming pumps – single impeller
