Series: JM NP
• Domestic water supply
• Transferring liquids
• Emptying tanks
• Gardening
Pump body: Cast Iron
Motor shaft: AISI 416
Impeller
JM 60 – JM 120: Noryl
JM 150 – NP(M) 13: Brass
Motor Bracket: Cast Iron
Max. Head: 79m
Max. Flow: 9,6m³/h
Max. Liquid temperature: 45°C
Insulation class: F
Poles: 2
Protection degree: IP44
Voltage: 230V (1ph) 400V (3 ph)

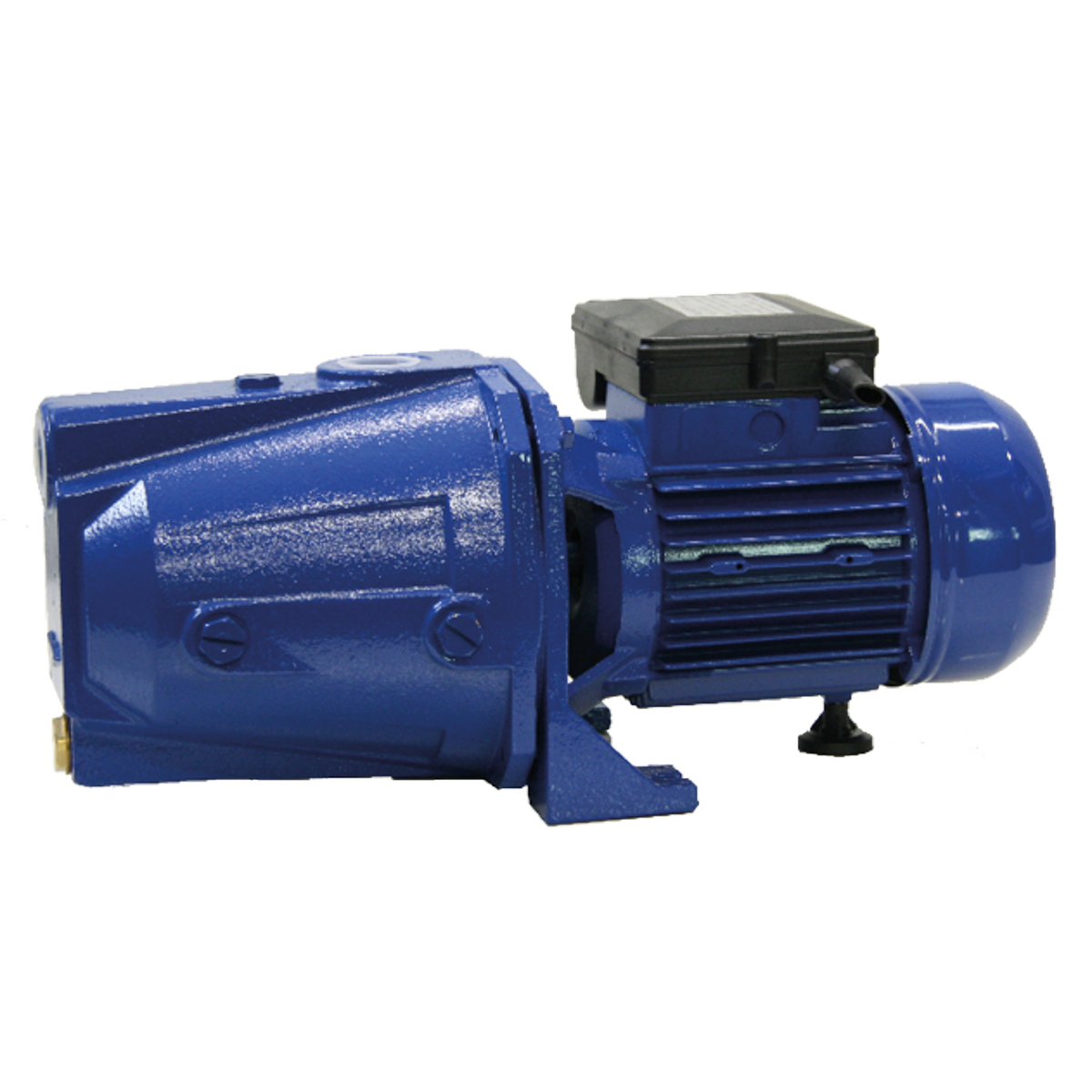

Cast iron self-priming pumps – single impeller
