Series: PX CS
• Industrial, civil and agricultural applications
• Heating and water supply systems
Pump body: Cast Iron
Motor shaft
CS(T) 75 – CS(T) 120: AISI 416
CS(T) 150 – CS(T) 550: AISI 303
Impeller
CS(T): Cast Iron
CSB(T) (only 1,5hp): Brass
Motor Bracket: Cast Iron
Max. Head: 21,5m
Max. Flow: 96m³/h
Max. Liquid temperature: 90°C
Insulation class: F
Poles: 2
Protection degree: IPX4
Voltage: 230V (1ph) 400V (3 ph)

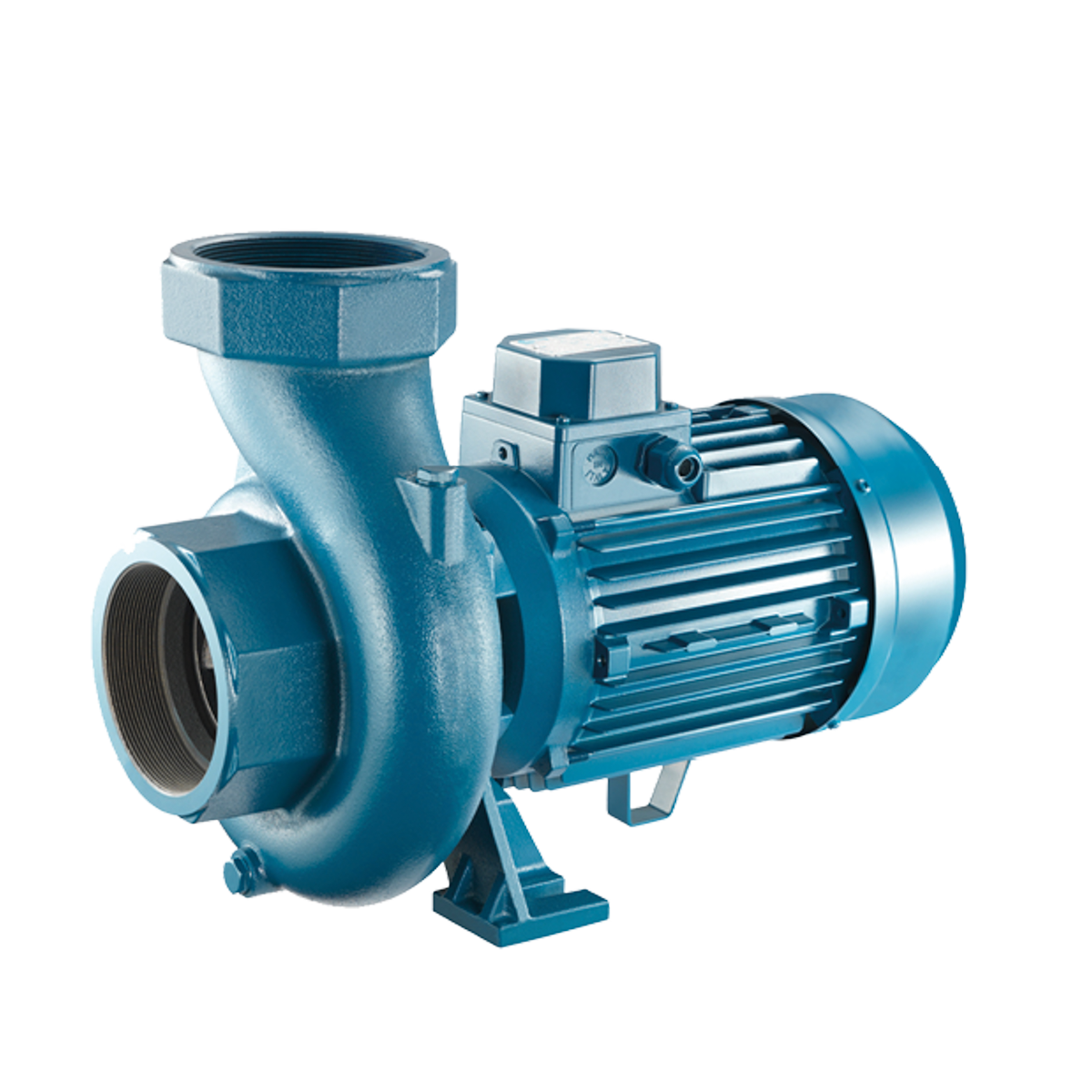

Cast iron centrifugal pumps – single impeller
