Series: CS
• Industrial, civil and agricultural applications
• Heating and water supply systems
Pump body: Cast Iron
Motor shaft: AISI 416
Impeller: Cast Iron
Motor Bracket: Cast Iron
Max. Head: 23m
Max. Flow: 90m³/h
Max. Liquid temperature: 80°C
Insulation class: F
Poles: 2
Protection degree: IP44
Voltage: 230V (1ph) 400V (3 ph)

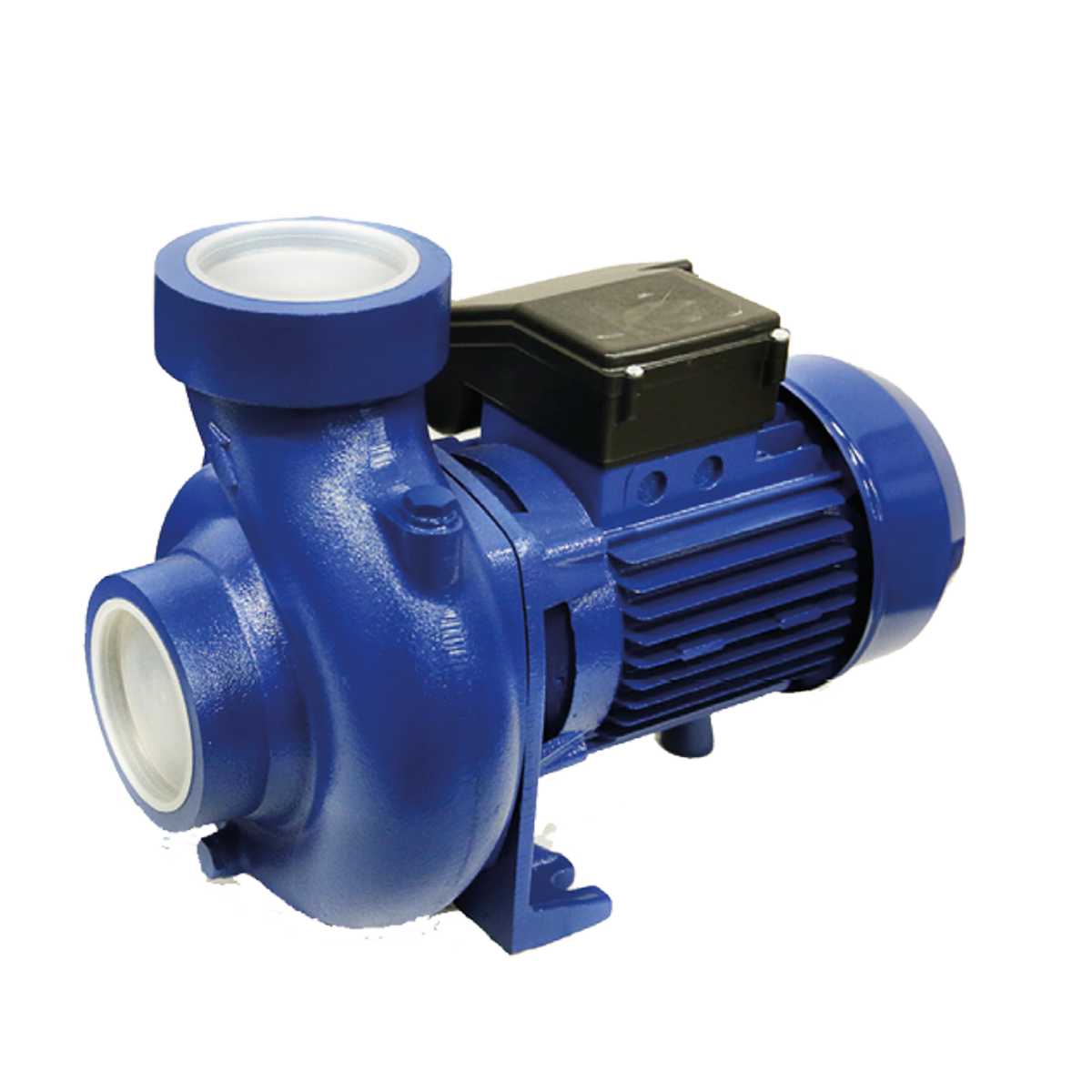

Cast iron centrifugal pumps – single impeller
