Series: PX CB
• Industrial, domestic and agricultural applications
Pump body: Cast Iron
Motor shaft
only CB(T) 100: AISI 416
CB(T) 100 – CB(T) 900: AISI 303
Impellers
CB(T) 100 – CB(T) 900: Noryl
CB(T) 800 – CB(T) 1500: Brass
Motor Bracket: Cast Iron
Max. Head: 98,3m
Max. Flow: 33m³/h
Max. Liquid temperature: 50°C (Noryl Imp.) / 90°C (Brass Imp.)
Insulation class: F
Poles: 2
Protection degree: IPX4 (CB(T) 100) / IPX5 (CB(T) 800)
Voltage: 230V (1ph) 400V/690V (3 ph)

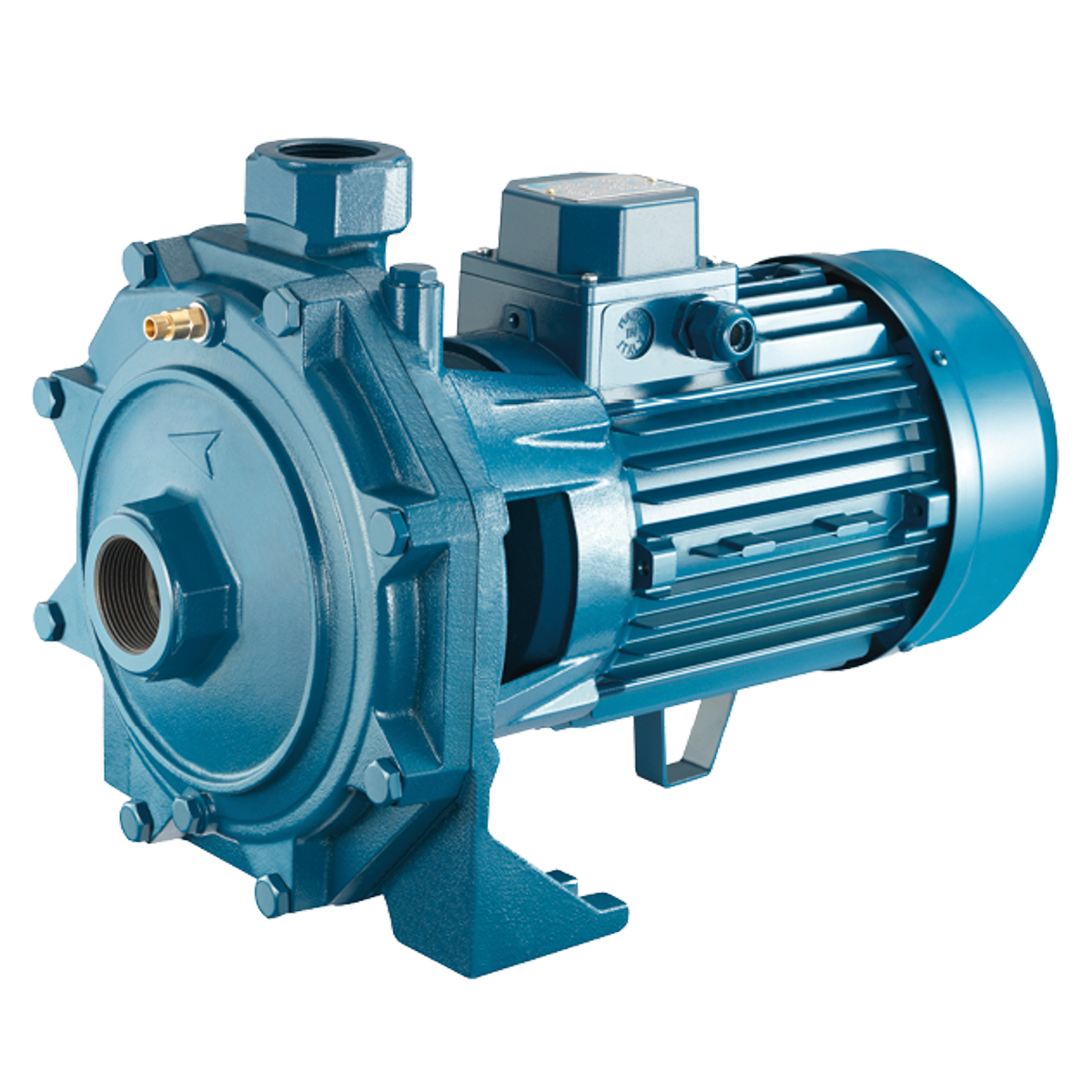

Cast iron centrifugal pumps – double impeller
