Series: PS MF 4 PM
Motor case: AISI 304*
Motor shaft: AISI 304
Upper bracket: AISI 304
*available upon request AISI 316
Max. Liquid temperature: 30°C
Max. Depth immersion: 150m
Insulation class: B
Poles: 2
Protection degree: IP68
Voltage: 400 V (3ph)

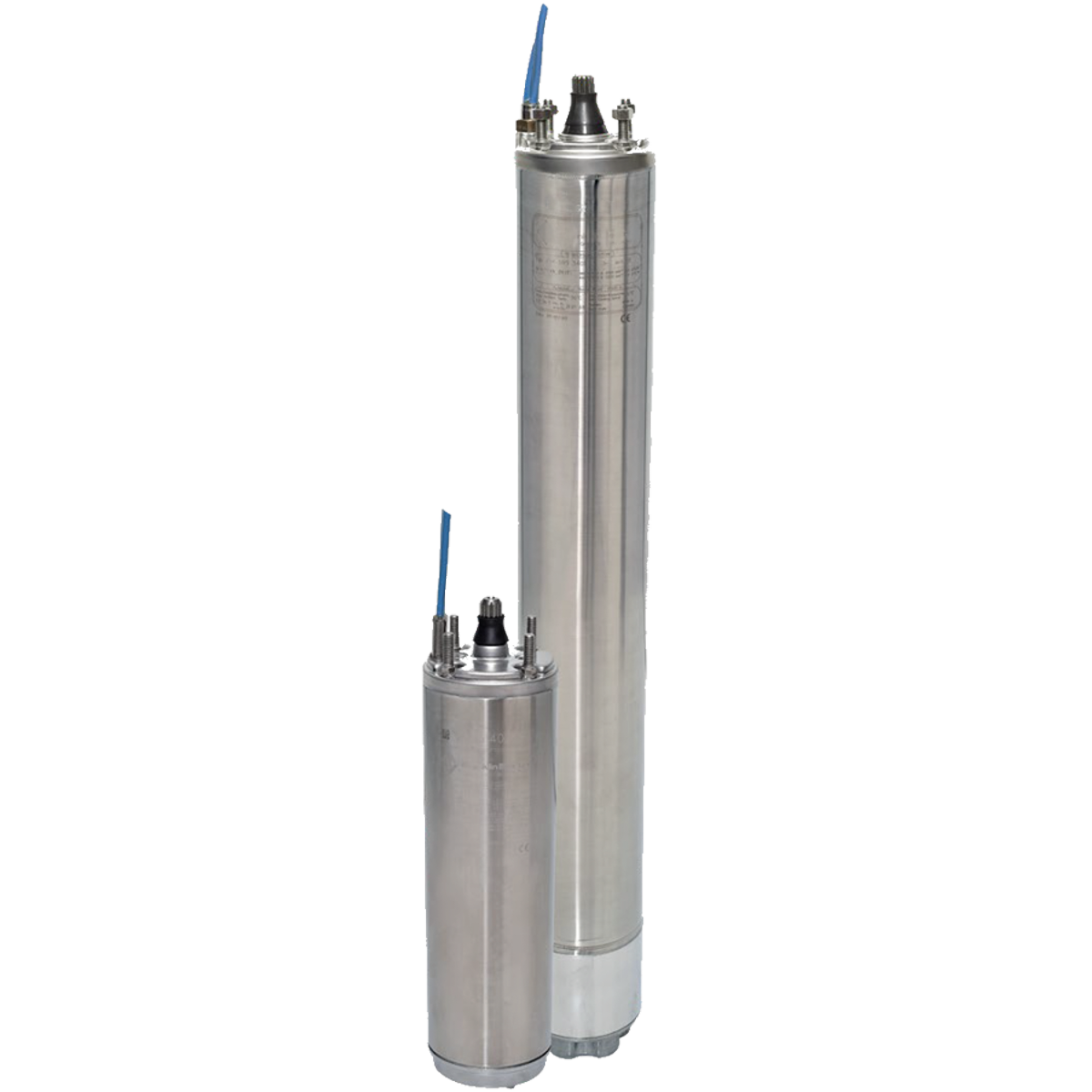

Franklin permanent-magnet 4″ submersible pump motors
