Series: DB DTRON
• Use in wells and tanks
• Pressurization
• Rainwater reuse
• Gardening and irrigation activities
External jacket: Technopolymer
Impellers: Technopolymer / AISI 304
Motor shaft: AISI 303
Diffuser: Technopolymer
Integrated 0,04 liter expansion tank
Max. Head: 45m
Max. Flow: 7,5m³/h
Max. liquid temperature: 50°C
Discharge head: 1″ 1/4
Max. depth immersion: 15m
Insulation class: F
Poles: 2
Protection degree: IP68
Voltage: 230V (1ph)

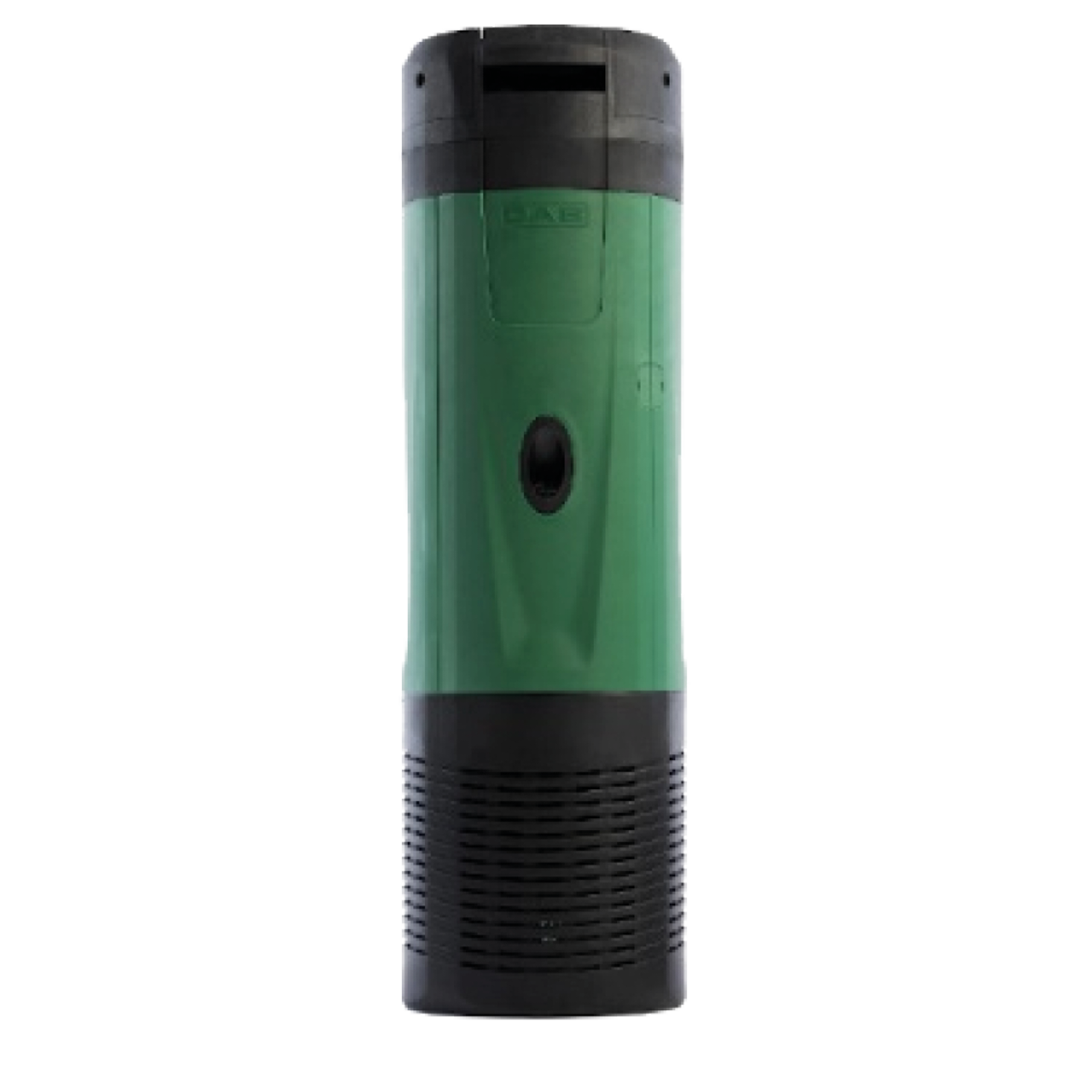

Electronic submersible multistage pumps
