Series: CM PX
• Industrial, civil and agricultural applications
• Heating and water supply systems
Pump body: Cast Iron
Motor shaft: CM(T) 45 – CM(T) 100 AISI 416 / CM(T) 164 – CM(T) 550 AISI 303
Impeller: CM(T) 45 – CM(T) 314 Noryl / CM(T) 400 – CM(T) 550 Brass
Motor Bracket: CM(T) 45 – CM(T) 50; CM(T) 164 – CM(T) 550 Cast Iron / CM(T) 75 – CM(T) 100 Aluminium
Max. Head: 55,9m
Max. Flow: 21m³/h
Max. Liquid temperature: Noryl Impeller 50°C / Brass Impeller 90°C
Insulation class: F
Poles: 2
Protection degree: IPX4
Voltage: 230V (1ph) 400V (3 ph)

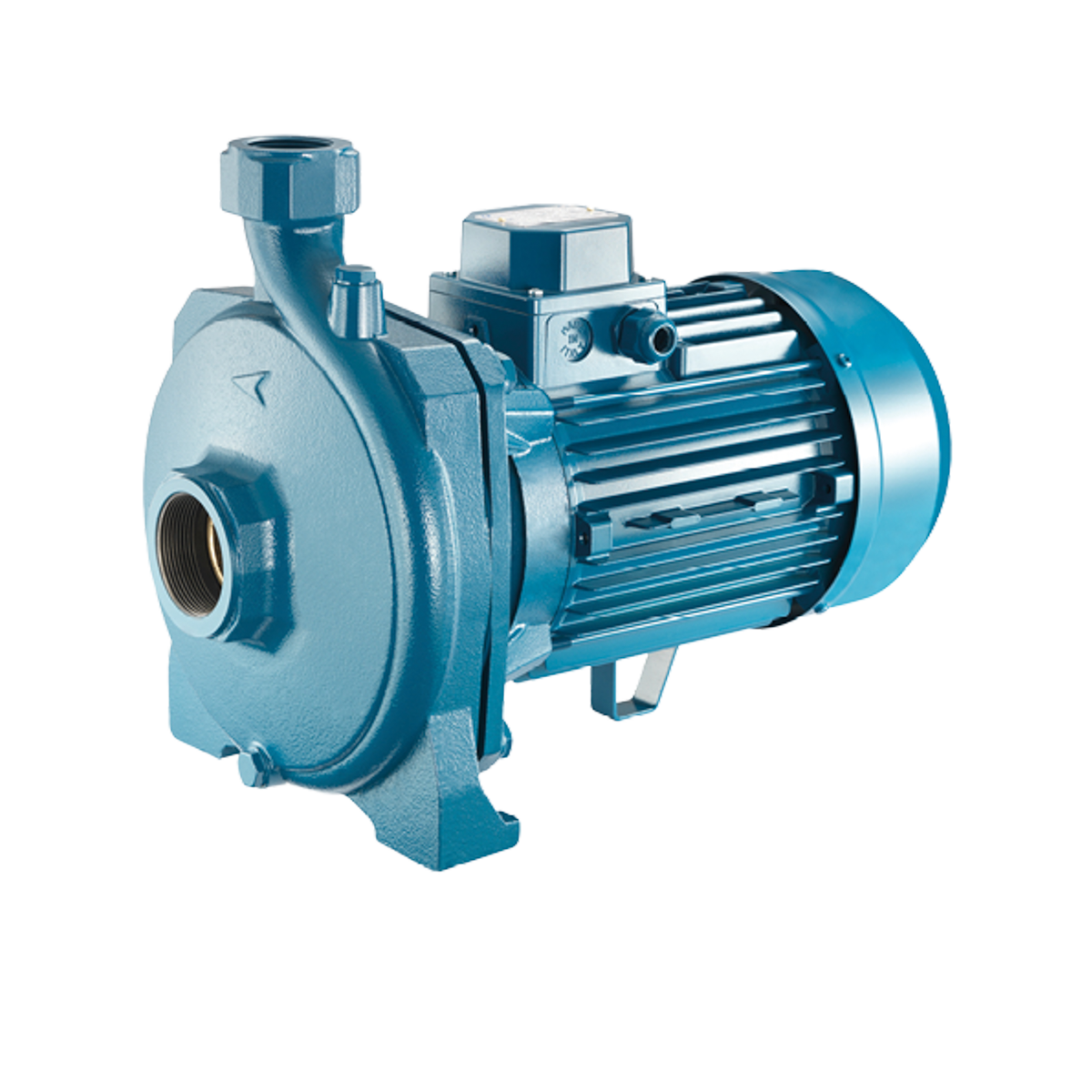

Cast iron centrifugal pumps – single impeller
