Series: CR
• Industrial, civil and agricultural applications
• Heating and water supply systems
Pump body: Cast Iron
Motor shaft: AISI 416
Impeller: Noryl
Motor Bracket: Cast Iron
Max. Head: 20,5m
Max. Flow: 16,8m³/h
Max. Liquid temperature: Noryl Impeller 50°C / Brass Impeller 90°C
Insulation class: F
Poles: 2
Protection degree: IPX4
Voltage: 230V (1ph) 400V (3 ph)

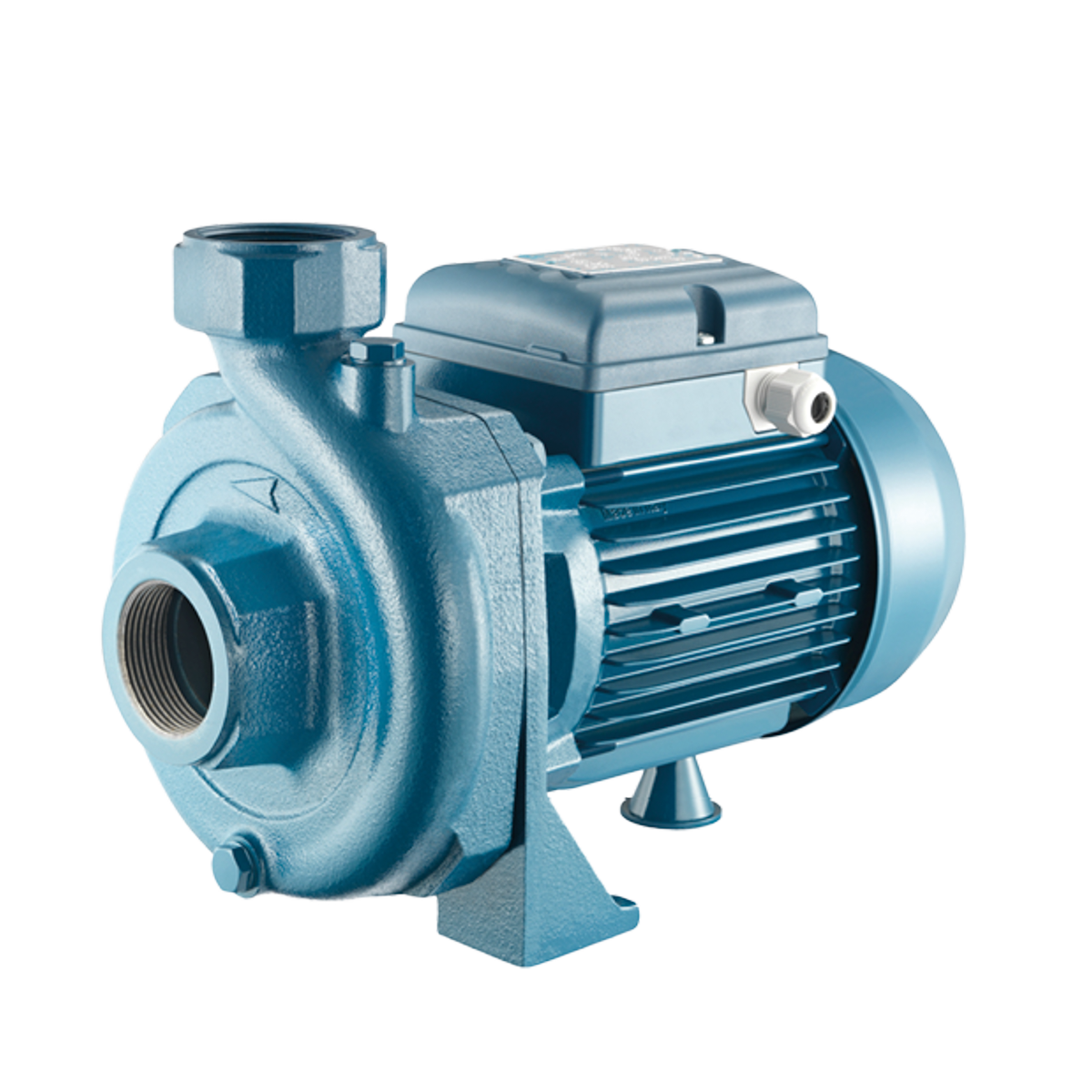

Cast iron centrifugal pumps – single impeller
