Series: AV RXY
• Civil and industrial water handling plants
• Pressurization plants
• Water supply from rain water tanks or reservoirs, 5″ water wells,
roman wells, basins and watercourses
• Sprinkler systems
External jacket: AISI 304
Impellers: Technopolymer
Pump shaft: AISI 304
Mechanical seal: Graphite / Alumina
Float switch and 20m H07RN-F cable with Schuko
Max. Head: 85 m
Max. Flow: 14,4m³/h
Max. Liquid temperature: 35°C
Discharge head: 1″ 1/4
Max. Depth immersion: 20m
Insulation class: F
Poles: 2
Protection degree: IP68
Voltage: 220-230V (1ph) 400V (3ph)

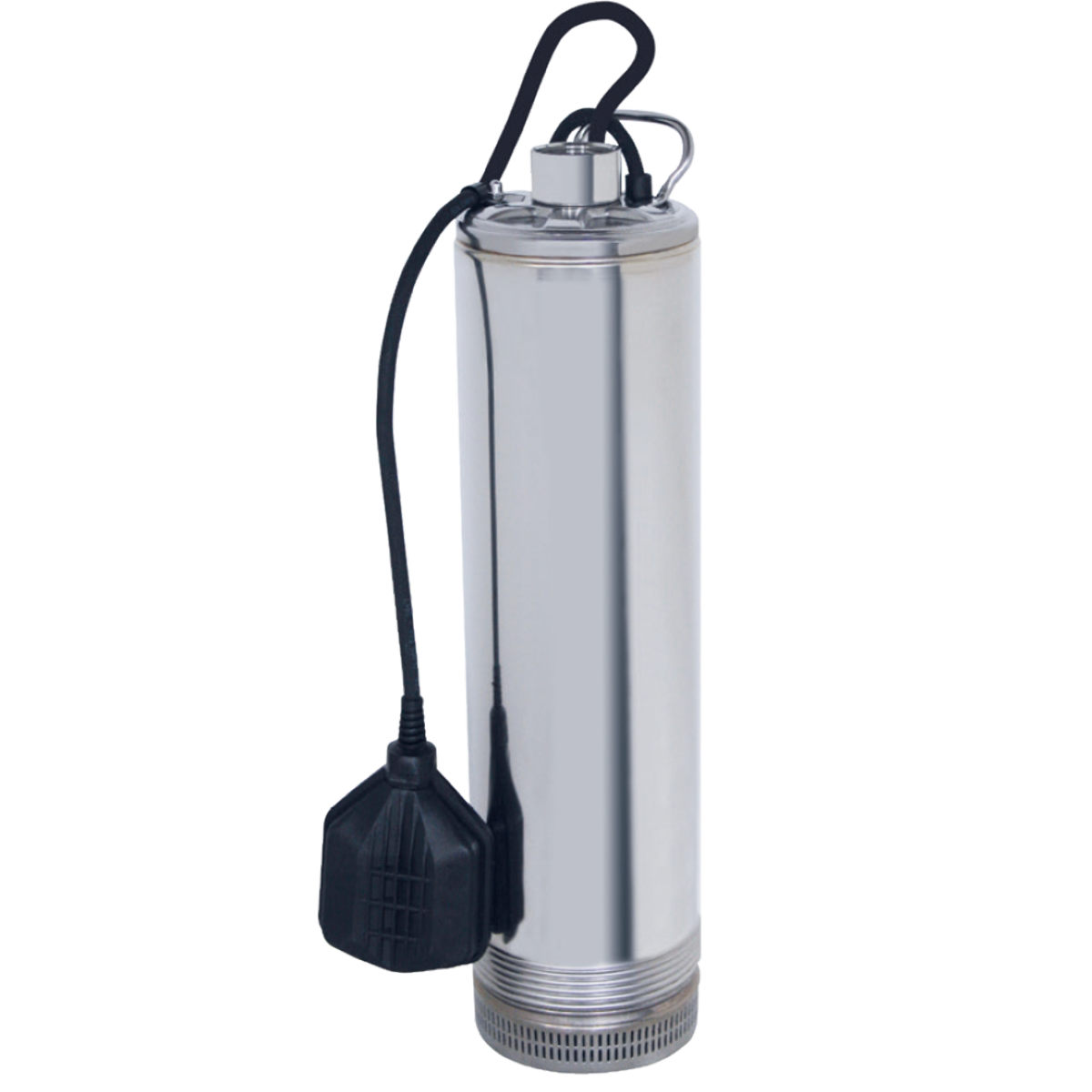

5″ SUBMERSIBLE MONOBLOC PUMPS
